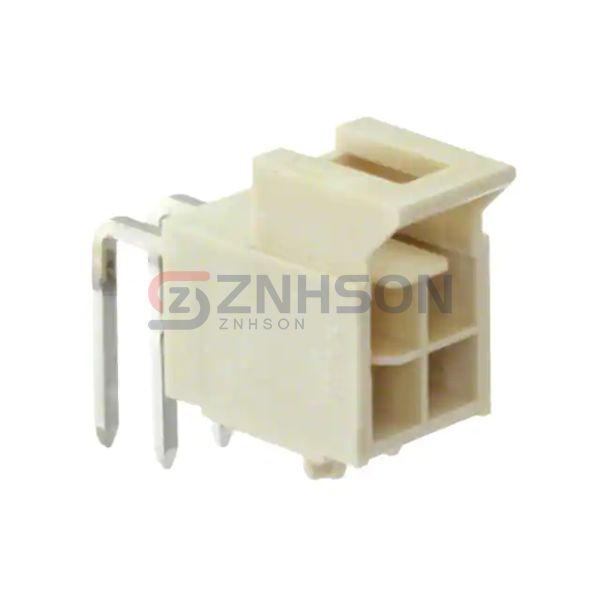

1053142204
Molex
Molex
CONN HEADER R/A 4POS 2.5MM
$1.91
Available to order
Reference Price (USD)
1+
$1.50000
10+
$1.35900
300+
$1.05413
600+
$0.97090
1,200+
$0.83220
5,100+
$0.73788
10,200+
$0.72124
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1053142204 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.098" (2.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.247" (6.28mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 250V
