122503
Amphenol RF
Amphenol RF

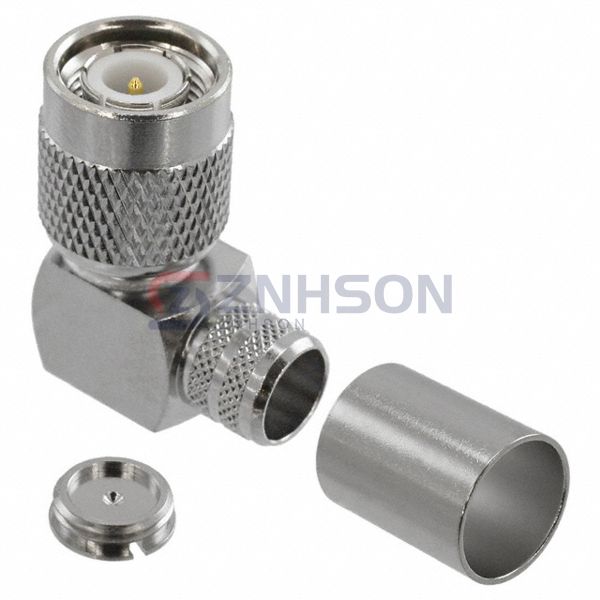

CONN TNC PLUG R/A 50 OHM SOLDER
$7.88
Available to order
Reference Price (USD)
100+
$7.52350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Amphenol RF's 122503 series elevates Coaxial Connectors (RF) technology with groundbreaking features. These connectors employ hyperbolic contact profiles that ensure consistent electrical performance through extended mating cycles. The product range includes EMI-filtered versions for sensitive electronic environments and high-voltage variants for specialized applications. Notable characteristics: Frequency range from DC to 70GHz Multi-finger beryllium copper contacts Corrosion-resistant stainless steel bodies Customizable keying options. The 122503 is extensively used in: Electronic intelligence systems Particle accelerator components Millimeter-wave imaging arrays Submarine communication systems. Its patented anti-microphonic design makes it particularly suitable for vibration-intensive aerospace applications.
Specifications
- Product Status: Active
- Connector Style: TNC
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
- Fastening Type: Threaded
- Frequency - Max: 11 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
