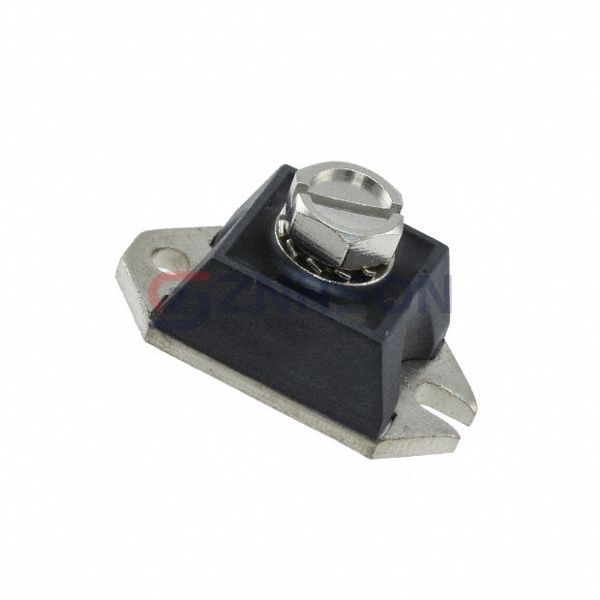

125NQ015R-1
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 15V 120A PRM1-1
$26.74
Available to order
Reference Price (USD)
594+
$27.60394
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 125NQ015R-1 by SMC Diode Solutions is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the 125NQ015R-1 ensures long-term reliability even in harsh operating conditions. Trust SMC Diode Solutions for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 15 V
- Current - Average Rectified (Io): 120A
- Voltage - Forward (Vf) (Max) @ If: 390 mV @ 120 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 40 mA @ 15 V
- Capacitance @ Vr, F: 7700pF @ 5V, 1MHz
- Mounting Type: Chassis Mount
- Package / Case: HALF-PAK
- Supplier Device Package: PRM1-1 (Half Pak Module)
- Operating Temperature - Junction: -55°C ~ 125°C
Related Products
Vishay General Semiconductor - Diodes Division
SE20AFJHM3/6B
Nexperia USA Inc.
BAS516,115
Vishay General Semiconductor - Diodes Division
MURS340S-E3/5BT
onsemi
NRVB130T1G
Micro Commercial Co
SL36PL-TP
onsemi
NRTS15100PFST3G
Vishay General Semiconductor - Diodes Division
US1D-E3/5AT
Taiwan Semiconductor Corporation
TSP12U120S

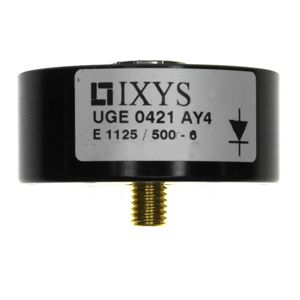

IXYS
