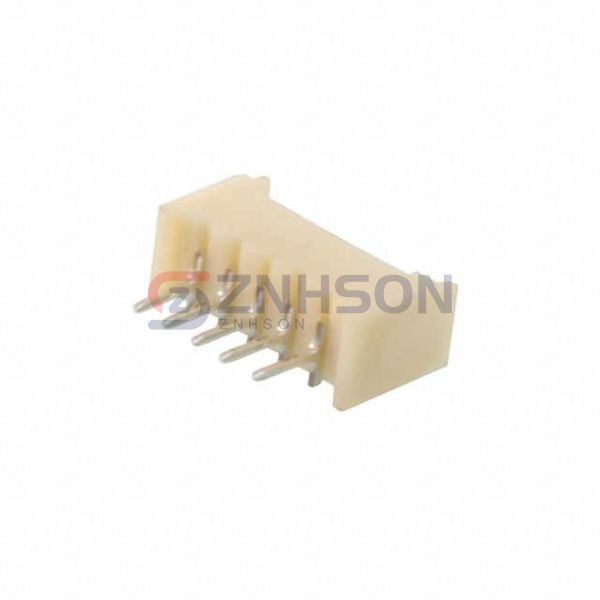

125SH-A-05-TS
Adam Tech
Adam Tech
CONN HEADER VERT 5POS 1.25MM
$0.81
Available to order
Reference Price (USD)
1+
$0.65000
10+
$0.60500
100+
$0.46390
500+
$0.40340
1,000+
$0.33281
5,000+
$0.29247
10,000+
$0.27230
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 125SH-A-05-TS rectangular connector header by Adam Tech. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 125SH-A-05-TS ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Adam Tech for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: -
- Insulation Height: 0.185" (4.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 125VAC/DC
Related Products
Samtec Inc.
FTS-105-01-FM-DV
Samtec Inc.
ZSS-115-04-S-D-740
TE Connectivity AMP Connectors
644752-6
Samtec Inc.
TSS-108-01-S-D
Samtec Inc.
TSM-118-02-S-SV-A
TE Connectivity AMP Connectors
6-104909-4
Preci-Dip
892-80-080-20-001101
Samtec Inc.

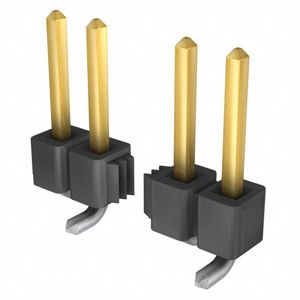

TSM-112-01-SM-SV-P-TR
Molex

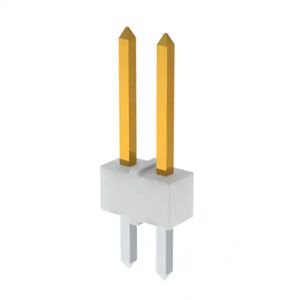

0022102021
