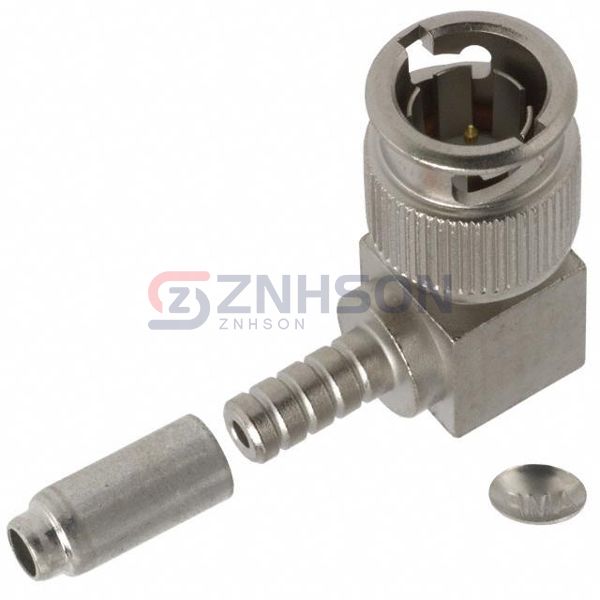

1274566-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN MINI BNC PLG R/A 75 OHM
$32.18
Available to order
Reference Price (USD)
1+
$22.70000
10+
$20.49000
25+
$19.63080
50+
$18.40380
100+
$17.79040
250+
$16.80888
500+
$16.31810
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1274566-3 from TE Connectivity AMP Connectors represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 1274566-3 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Obsolete
- Connector Style: BNC, Mini
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Crimp
- Impedance: 75Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-179
- Fastening Type: Bayonet Lock
- Frequency - Max: 2 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
