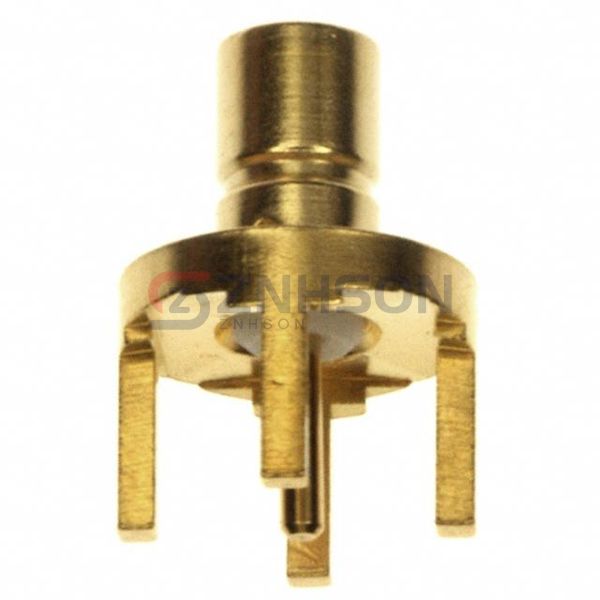

131-3701-201
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson
CONN SMB JACK STR 50 OHM PCB
$6.98
Available to order
Reference Price (USD)
1+
$4.41000
10+
$4.24800
25+
$3.92400
50+
$3.76200
100+
$3.60000
250+
$3.19500
500+
$3.11400
1,000+
$2.70900
2,500+
$2.54700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Cinch Connectivity Solutions Johnson's 131-3701-201 represents the cutting edge of Coaxial Connectors (RF) technology, engineered for precision connectivity in RF and microwave systems. This connector series features innovative contact design that maintains stable electrical performance through thousands of mating cycles. Our RF coaxial connectors are characterized by their weather-resistant construction, making them suitable for both indoor and outdoor installations. Key technical advantages include VSWR <1.25, operating temperature range -55 C to +125 C, and multiple mounting options. These components are extensively used in broadcast equipment (TV/radio transmitters), wireless network infrastructure (small cells, repeaters), military communications systems, and industrial automation controls. The 131-3701-201 variant specifically addresses the need for compact, high-density interconnects in modern phased array antenna systems.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
