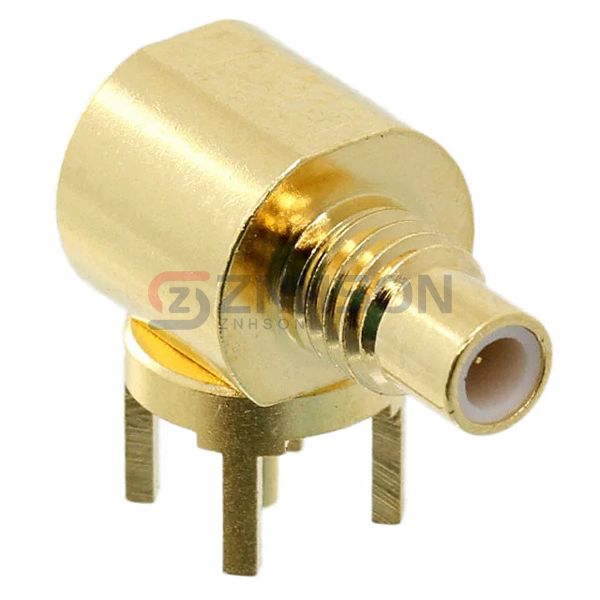

131-6701-301
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson
CONN SMC JACK R/A 50OHM PCB
$10.58
Available to order
Reference Price (USD)
1+
$7.94000
10+
$7.61300
25+
$6.95120
50+
$6.62000
100+
$6.28900
250+
$5.62700
500+
$5.29600
1,000+
$4.63400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 131-6701-301 from Cinch Connectivity Solutions Johnson represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 131-6701-301 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMC
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 10 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
