131-9701-211
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

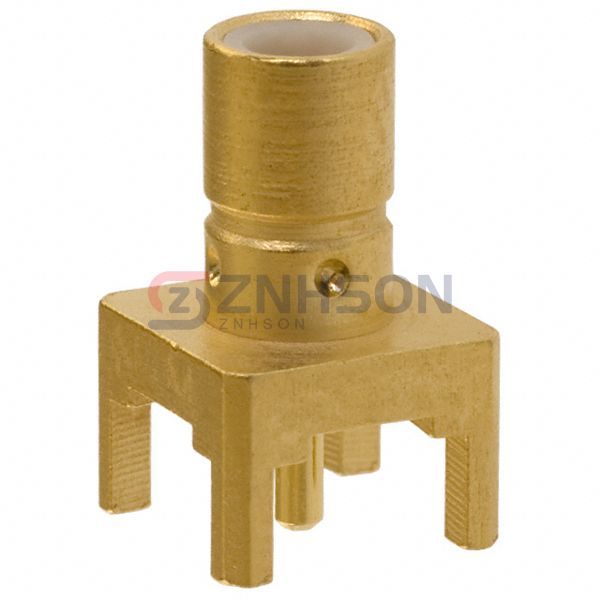

CONN SMB JACK STR 50 OHM PCB
$13.84
Available to order
Reference Price (USD)
1+
$11.76000
10+
$10.69300
25+
$10.42560
50+
$9.62380
100+
$9.08910
250+
$8.28708
500+
$8.17700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 131-9701-211 from Cinch Connectivity Solutions Johnson sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 131-9701-211 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: Non-Magnetic
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Copper Alloy
