132246
Amphenol RF
Amphenol RF

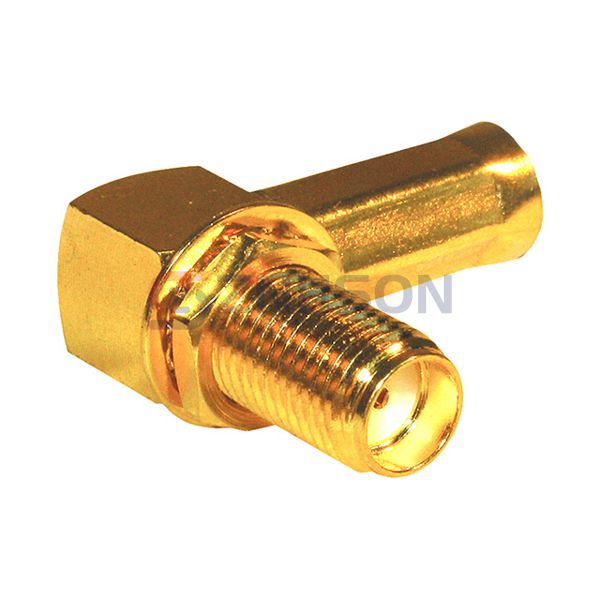

CONN SMA JACK R/A 50OHM SOLDER
$21.28
Available to order
Reference Price (USD)
1+
$20.16000
10+
$18.72000
25+
$16.80000
50+
$16.32000
100+
$14.40000
250+
$13.44000
500+
$13.15200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 132246 from Amphenol RF represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 132246 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
- Fastening Type: Threaded
- Frequency - Max: 12.4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
Cinch Connectivity Solutions Trompeter
UPL20-2
Samtec Inc.
MMCX-J-P-H-RA-SM1
Radiall USA, Inc.
R321007000
NTE Electronics, Inc
06-B015
Amphenol RF
031-2368-RFX
Cinch Connectivity Solutions Trompeter
BJ74C-201
Winchester Interconnect
161V504E
Amphenol RF
31-2368

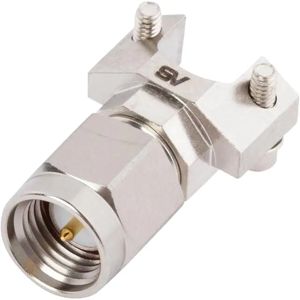

Amphenol SV Microwave
