1414900000
Weidmüller
Weidmüller
CONN HEADER VERT 6POS 5MM
$9.46
Available to order
Reference Price (USD)
50+
$8.60920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

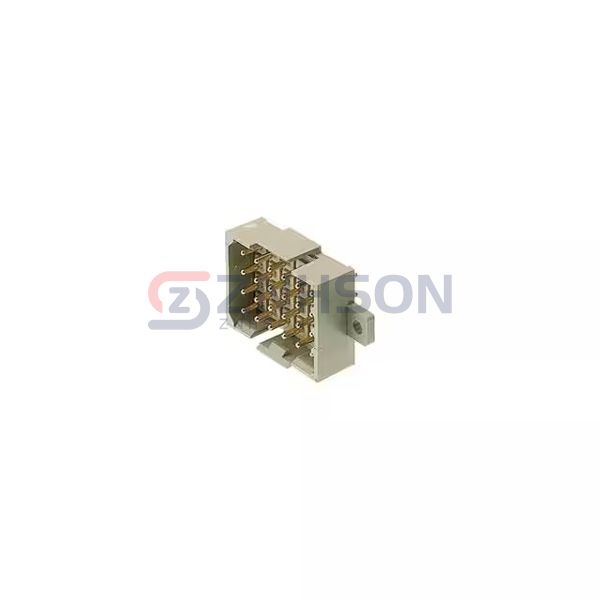

Enhance your electronic assemblies with the 1414900000 rectangular connector header from Weidmüller. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1414900000 meets the highest industry standards. Weidmüller provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.177" (4.50mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Mounting Flange
- Operating Temperature: 100°C
- Ingress Protection: IP20
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 10A
- Voltage Rating: 300V
