142-9701-301
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

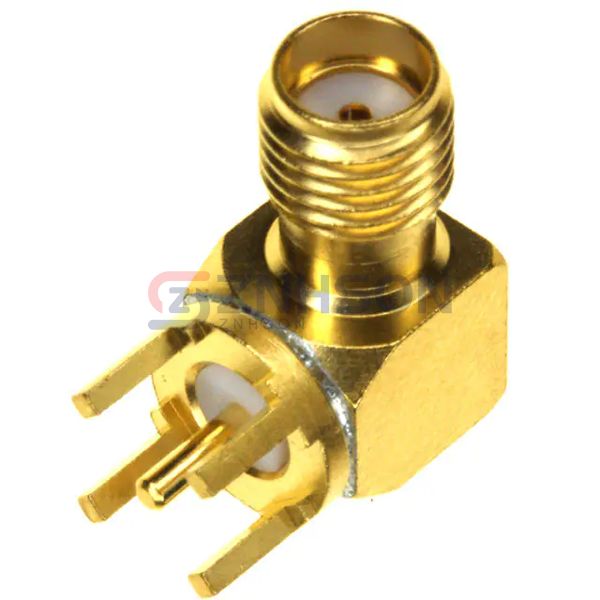

CONN SMA JACK R/A 50 OHM PCB
$29.40
Available to order
Reference Price (USD)
1+
$18.76000
10+
$16.93400
25+
$16.22400
50+
$15.21000
100+
$14.70300
250+
$13.89180
500+
$13.48620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 142-9701-301 from Cinch Connectivity Solutions Johnson sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 142-9701-301 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 18 GHz
- Number of Ports: 1
- Features: Non-Magnetic
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
