14358
Bulgin
Bulgin
CONN HEADER VERT 7POS 2.54MM
$0.57
Available to order
Reference Price (USD)
100+
$0.88000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

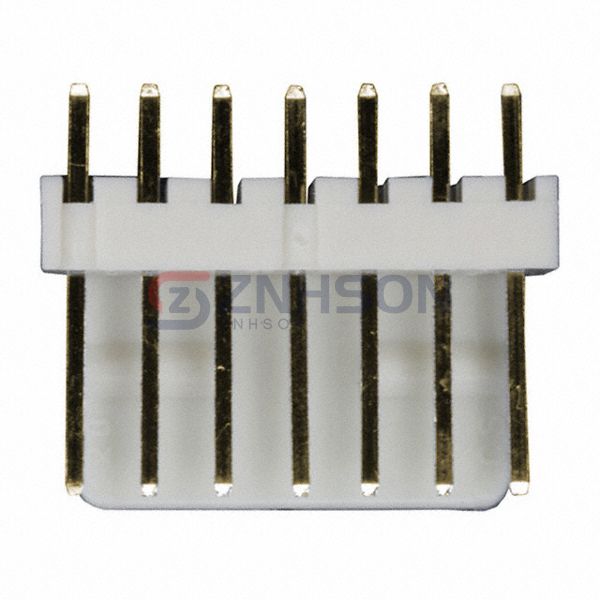

The 14358 male pin header by Bulgin offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Bulgin for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: -
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: -
- Features: -
- Operating Temperature: 0°C ~ 70°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 1A
- Voltage Rating: -
