1444900000
Weidmüller
Weidmüller

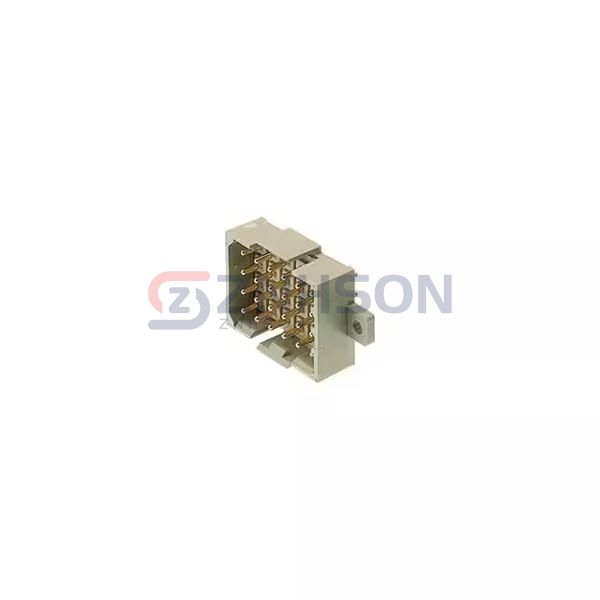

CONN HEADER VERT 18POS 5MM
$22.92
Available to order
Reference Price (USD)
25+
$26.13520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1444900000 by Weidmüller is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1444900000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Weidmüller ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 18
- Number of Rows: 3
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Mounting Flange
- Operating Temperature: 100°C
- Ingress Protection: IP20
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 10A
- Voltage Rating: 300V
