147-0701-822
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

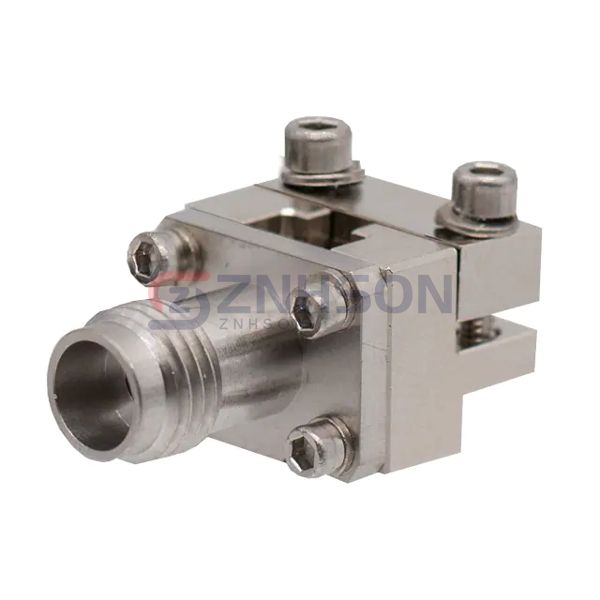

2.4MM END LAUNCH JACK, SCREW-ON
$69.70
Available to order
Reference Price (USD)
1+
$69.70000
500+
$69.003
1000+
$68.306
1500+
$67.609
2000+
$66.912
2500+
$66.215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 147-0701-822 from Cinch Connectivity Solutions Johnson represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 147-0701-822 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: 2.4mm (APC-2.4, OS-50)
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Screw
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 50 GHz
- Number of Ports: 1
- Features: Mounting Hardware
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
