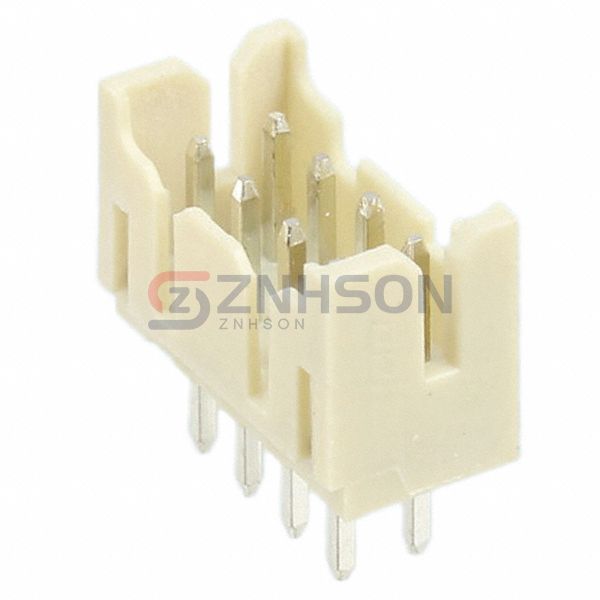

1470109-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2MM
$0.31
Available to order
Reference Price (USD)
1+
$0.26000
10+
$0.24200
100+
$0.17160
500+
$0.14702
1,000+
$0.12250
5,000+
$0.11025
10,000+
$0.10106
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1470109-8 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 1470109-8 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.256" (6.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 100VDC
