155244-6202-RB
3M
3M
CONN HEADER VERT 44POS 2MM
$9.55
Available to order
Reference Price (USD)
1,050+
$7.32032
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 155244-6202-RB rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 155244-6202-RB ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 44
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.112" (2.84mm)
- Overall Contact Length: -
- Insulation Height: 0.425" (10.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.25A
- Voltage Rating: -
Related Products
Samtec Inc.
HTST-110-04-T-D-RA
TE Connectivity AMP Connectors
1734829-3
Würth Elektronik
62401221722
Sullins Connector Solutions
PREC040SBAN-M71RC
Preci-Dip
852-80-008-10-001101
3M
929836-03-18
Samtec Inc.

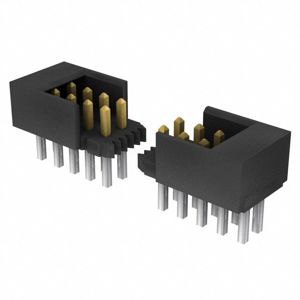

FTS-112-03-L-D-S
Amphenol ICC (FCI)
10129380-905002BLF
Samtec Inc.

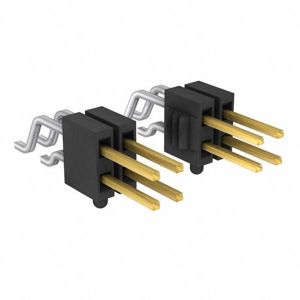

FTSH-115-04-L-DH-A-C-TR
