1566230-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

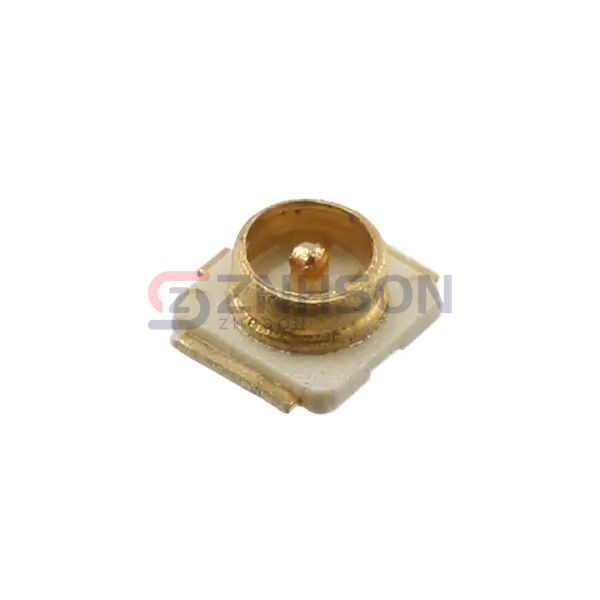

CONN UMC RCPT STR 50 OHM SMD
$0.73
Available to order
Reference Price (USD)
1+
$0.73000
500+
$0.7227
1000+
$0.7154
1500+
$0.7081
2000+
$0.7008
2500+
$0.6935
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TE Connectivity AMP Connectors's 1566230-1 represents the cutting edge of Coaxial Connectors (RF) technology, engineered for precision connectivity in RF and microwave systems. This connector series features innovative contact design that maintains stable electrical performance through thousands of mating cycles. Our RF coaxial connectors are characterized by their weather-resistant construction, making them suitable for both indoor and outdoor installations. Key technical advantages include VSWR <1.25, operating temperature range -55 C to +125 C, and multiple mounting options. These components are extensively used in broadcast equipment (TV/radio transmitters), wireless network infrastructure (small cells, repeaters), military communications systems, and industrial automation controls. The 1566230-1 variant specifically addresses the need for compact, high-density interconnects in modern phased array antenna systems.
Specifications
- Product Status: Obsolete
- Connector Style: U.FL (UMCC)
- Connector Type: Receptacle, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Surface Mount
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: -
- Ingress Protection: -
- Center Contact Material: -
Related Products
Radiall USA, Inc.
7203-1571-003
RF Industries
RFB-1124-1X
Amphenol SV Microwave
1732-6012
Cinch Connectivity Solutions Johnson
131-3701-416
Radiall USA, Inc.
3006-1541-010
Radiall USA, Inc.
7406-1521-005
Amphenol SV Microwave
1521-60125
Cinch Connectivity Solutions
VBF201

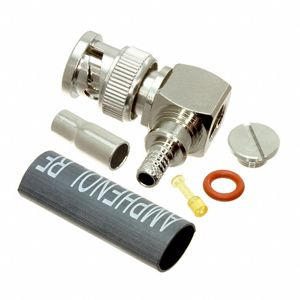

Amphenol RF
