15758362601000
HARTING
HARTING

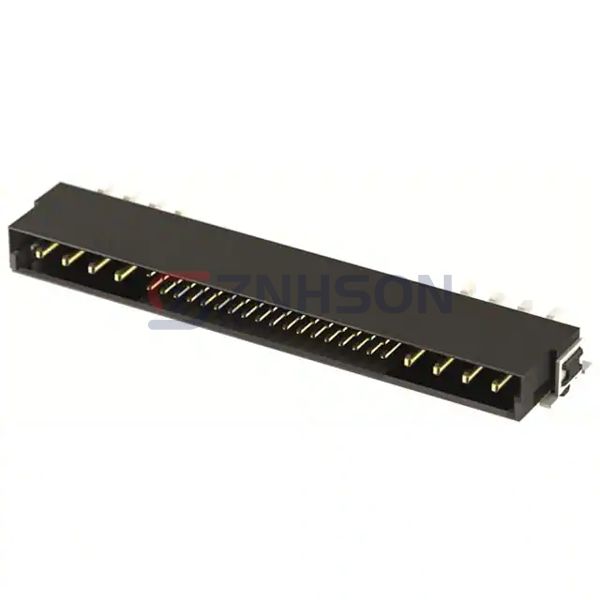

HAR-FLEX HYBRID ANGLED MALE, 2P+
$11.34
Available to order
Reference Price (USD)
1+
$11.34000
500+
$11.2266
1000+
$11.1132
1500+
$10.9998
2000+
$10.8864
2500+
$10.773
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 15758362601000 by HARTING is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. HARTING delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 44 (36 + 8 Power)
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.167" (4.24mm)
- Contact Shape: Rectangular, Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 22.5A
- Voltage Rating: 50VAC, 120VDC
Related Products
Samtec Inc.
TSM-120-03-T-SV-P-TR
Samtec Inc.
HTSW-120-14-S-S-LL
Preci-Dip
800-10-031-30-480101
TE Connectivity AMP Connectors
5-146134-9
3M
2358-6221-TG
Preci-Dip
850-80-049-30-001101
Preci-Dip
802-80-032-20-001101

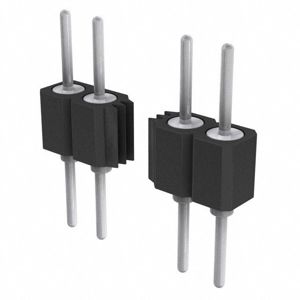

Preci-Dip
