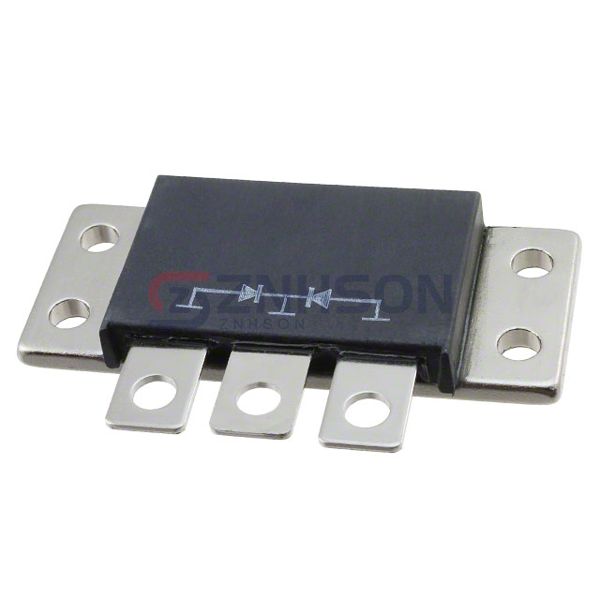

163CMQ100
SMC Diode Solutions
SMC Diode Solutions
DIODE ARRAY SCHOTTKY 100V TO249
$53.33
Available to order
Reference Price (USD)
1+
$32.39000
10+
$30.23100
100+
$26.34410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the 163CMQ100 by SMC Diode Solutions represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With SMC Diode Solutions's patented junction design, the 163CMQ100 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): -
- Voltage - Forward (Vf) (Max) @ If: 980 mV @ 80 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1.5 mA @ 100 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: TO-249AA
- Supplier Device Package: TO-249AA
