166.42.2520.001
IMS Connector Systems
IMS Connector Systems

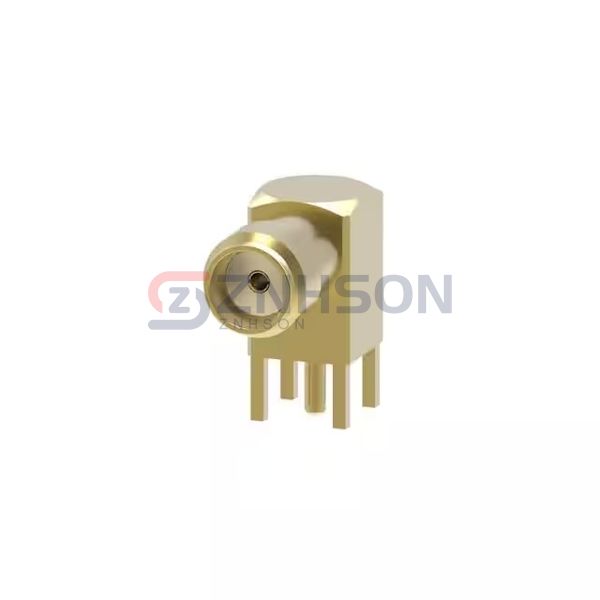

SMA - PCB MOUNT ANGLE JACK
$7.94
Available to order
Reference Price (USD)
1+
$7.94000
500+
$7.8606
1000+
$7.7812
1500+
$7.7018
2000+
$7.6224
2500+
$7.543
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
As a leader in Coaxial Connectors (RF), IMS Connector Systems presents the 166.42.2520.001 series - engineered for mission-critical RF connectivity. These connectors feature advanced surface treatments that minimize oxidation while maintaining stable contact resistance. The product line includes both semi-rigid and flexible cable interface options with various termination methods. Key technical attributes include: Operating frequency to 65GHz Multiple plating options (gold, silver, nickel) Vibration-resistant designs Custom length and adapter configurations. The 166.42.2520.001 finds extensive use in: Electronic countermeasure systems Radio astronomy receivers High-energy physics experiments Commercial satellite TV systems. Its unique tri-material construction provides optimal balance between electrical performance and mechanical durability.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 10 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
