1714916
Phoenix Contact
Phoenix Contact

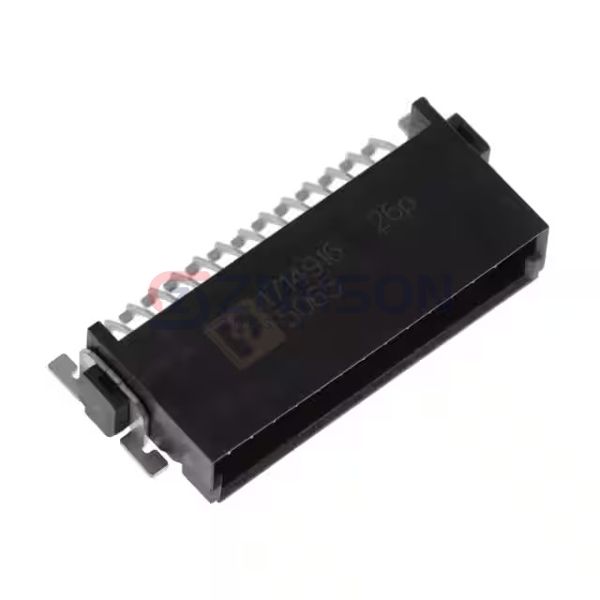

CONN HEADER 1.27MM 26POS SMD RA
$4.00
Available to order
Reference Price (USD)
560+
$4.56961
1,120+
$3.99840
1,680+
$3.91272
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1714916 by Phoenix Contact is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Phoenix Contact delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.4A
- Voltage Rating: 500V
