1714924
Phoenix Contact
Phoenix Contact

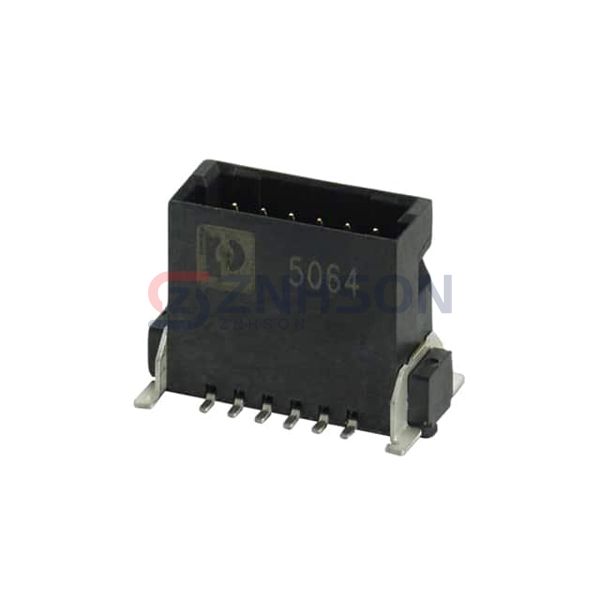

CONN HEADER 1.27MM 12POS SMD
$3.40
Available to order
Reference Price (USD)
280+
$4.20071
560+
$4.08068
840+
$3.72062
1,400+
$3.48058
1,960+
$3.36056
2,800+
$3.24054
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 1714924 rectangular connector header from Phoenix Contact. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 1714924 is perfect for automotive, industrial, and consumer electronics. Phoenix Contact ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.323" (8.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.4A
- Voltage Rating: 500V
