1714937
Phoenix Contact
Phoenix Contact

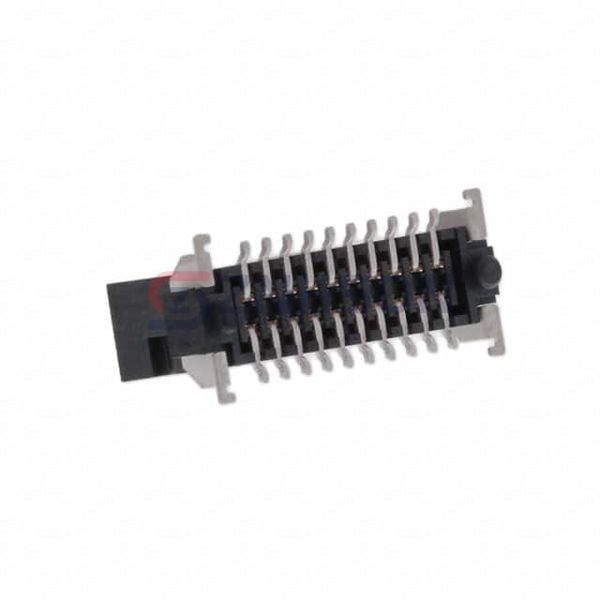

CONN HEADER 1.27MM 20POS SMD
$3.80
Available to order
Reference Price (USD)
280+
$4.51996
560+
$4.25407
840+
$3.98820
1,400+
$3.72232
1,960+
$3.64256
2,800+
$3.53620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 1714937 rectangular connector header by Phoenix Contact. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 1714937 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Phoenix Contact for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.264" (6.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.4A
- Voltage Rating: 500V
Related Products
Harwin Inc.
M80-8410842
Preci-Dip
852-10-068-30-002101
Amphenol ICC (FCI)
67996-152-183028LF
Preci-Dip
860-80-041-40-001101
Samtec Inc.
TSM-104-02-LM-SV-P
Molex
0022284032
Samtec Inc.
TSM-134-02-F-DV-A
Samtec Inc.

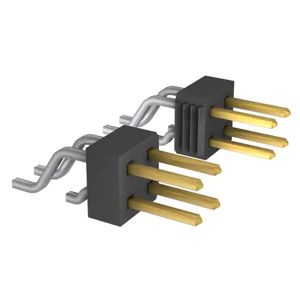

TSM-107-01-S-DH-P-TR
