1714999
Phoenix Contact
Phoenix Contact

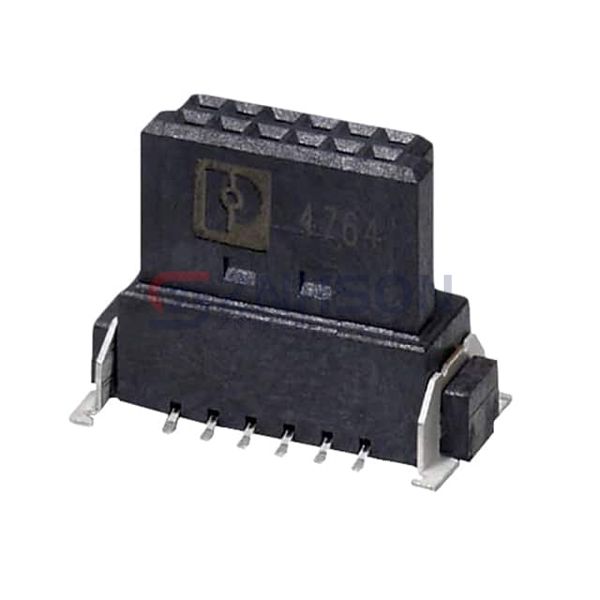

CONN RECEPTACLE 1.27MM 12POS SMD
$3.74
Available to order
Reference Price (USD)
280+
$4.68179
560+
$4.40639
840+
$4.13100
1,400+
$3.85560
1,960+
$3.77298
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with 1714999 Phoenix Contact Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Phoenix Contact connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 12
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.356" (9.05mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 10.8mm, 12.3mm
- Ingress Protection: -
- Features: Board Guide, Solder Retention
- Current Rating (Amps): 1.4A
- Voltage Rating: 500V
