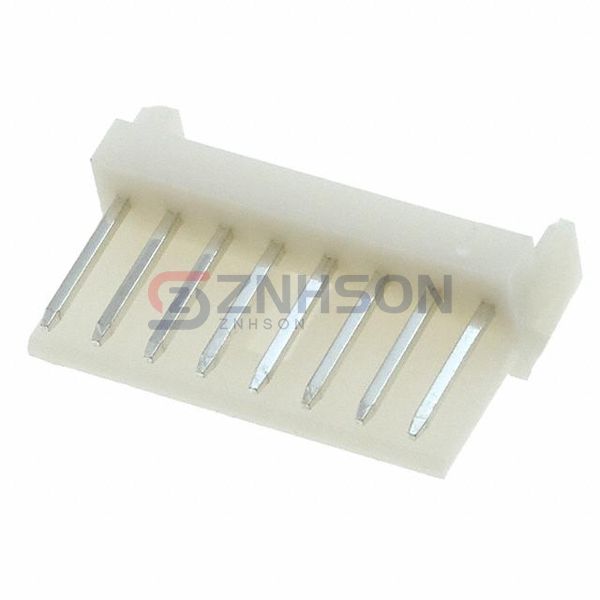

171826-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 8POS 2.5MM
$0.95
Available to order
Reference Price (USD)
1+
$0.93000
10+
$0.87000
100+
$0.67800
500+
$0.59578
1,000+
$0.49985
5,000+
$0.44504
10,000+
$0.41764
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 171826-8 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.264" (6.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 31.5µin (0.80µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC, 350VDC
Related Products
Harwin Inc.
M20-9721346
Preci-Dip
830-80-007-30-001101
Samtec Inc.
SHF-112-01-L-D-RA
Samtec Inc.
TSW-107-14-L-D
TE Connectivity AMP Connectors
4-103185-0-11
Samtec Inc.
TSW-114-08-G-D
CNC Tech
3020-16-0100-00
Sullins Connector Solutions

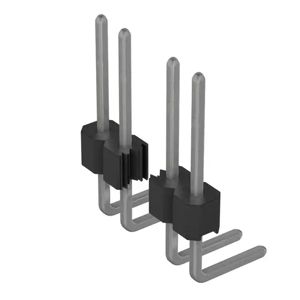

PREC032SBAN-M71RC
