1722871302
Molex
Molex

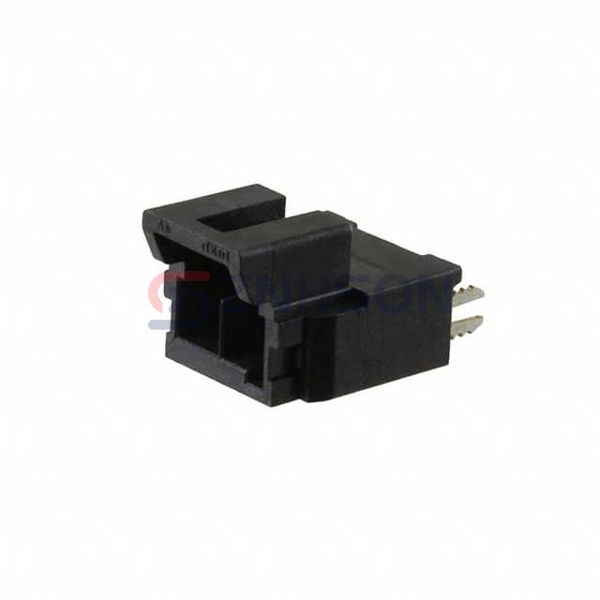

CONN HEADER VERT 2POS 3.5MM
$2.32
Available to order
Reference Price (USD)
1+
$1.82000
10+
$1.65300
100+
$1.41690
500+
$1.18072
1,000+
$1.01205
5,000+
$0.89735
10,000+
$0.87711
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 1722871302 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 1722871302 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -40°C ~ 120°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400V
