1722982110
Molex
Molex
CONN HEADER VERT 10POS 3.5MM
$2.04
Available to order
Reference Price (USD)
1+
$1.76000
10+
$1.59900
100+
$1.37090
500+
$1.14240
1,000+
$0.97920
5,000+
$0.86822
10,000+
$0.84864
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

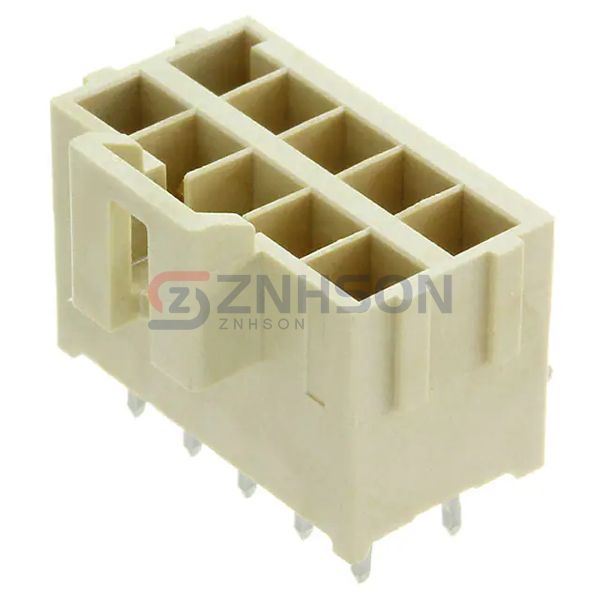

The 1722982110 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.181" (4.60mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 400V
Related Products
Amphenol ICC (FCI)
77317-418-10LF
Samtec Inc.
TMMS-120-01-L-Q-FS
Samtec Inc.
FTS-105-02-FM-D
Samtec Inc.
TMM-130-06-L-S-SM
Samtec Inc.
TSM-110-02-L-DV-P
TE Connectivity AMP Connectors
147279-3
TE Connectivity AMP Connectors
4-103321-0-22
TE Connectivity AMP Connectors

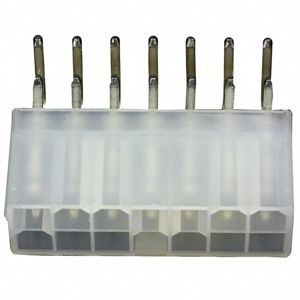

1-1586041-4
