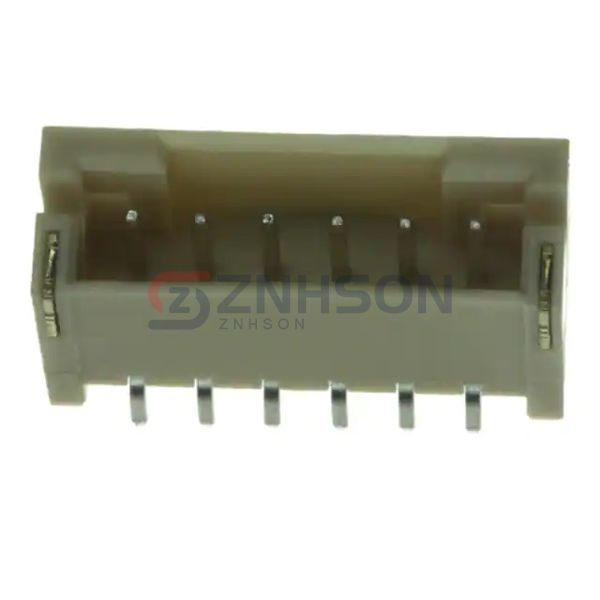

1775469-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 6POS 2MM
$0.86
Available to order
Reference Price (USD)
600+
$0.58595
1,200+
$0.52734
1,800+
$0.49805
3,000+
$0.48340
6,000+
$0.46875
15,000+
$0.43946
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1775469-6 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: -
- Contact Length - Mating: 0.139" (3.53mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.217" (5.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
