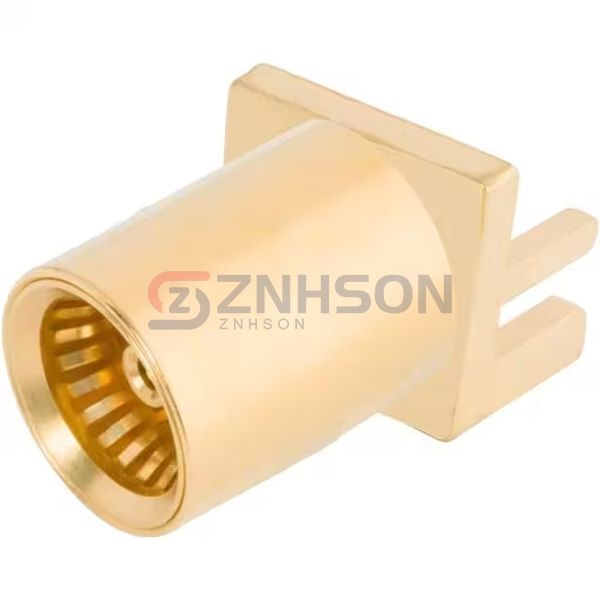

1785-0003
Amphenol SV Microwave
Amphenol SV Microwave
CONN BMA JACK STR 50OHM EDGE MNT
$70.84
Available to order
Reference Price (USD)
100+
$52.79980
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Amphenol SV Microwave 1785-0003 exemplifies our commitment to quality in Coaxial Connectors (RF). These connectors feature innovative contact geometries that minimize passive intermodulation (PIM), crucial for modern multi-carrier wireless systems. With available configurations including push-on, threaded, and bayonet coupling styles, they accommodate diverse installation requirements. The product family offers exceptional environmental sealing (IP67 rated options) and flame-retardant material choices. Typical deployments include: Distributed antenna systems (DAS) Avionics test equipment Quantum computing research setups Cable television headend systems. The 1785-0003 variant is specially designed for high-power handling (up to 500W average power) making it suitable for radar transmitters and scientific instrumentation.
Specifications
- Product Status: Active
- Connector Style: BMA
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 22 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
Amphenol Times Microwave Systems
EZ-300-TM-RA-X
Radiall USA, Inc.
R222940100
Amphenol SV Microwave
SF6511-60010
Radiall USA, Inc.
3003-1551-703
Radiall USA, Inc.
R124413045
Amphenol SV Microwave
3211-60112
Rosenberger
19S10H-40ML5
Radiall USA, Inc.
9504-9113-031
Amphenol RF

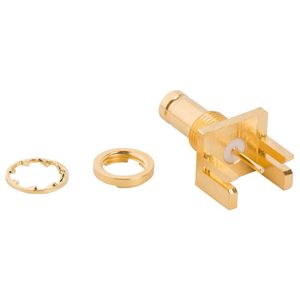

102-692-04
