1EBN1001AEXUMA1
Infineon Technologies
Infineon Technologies

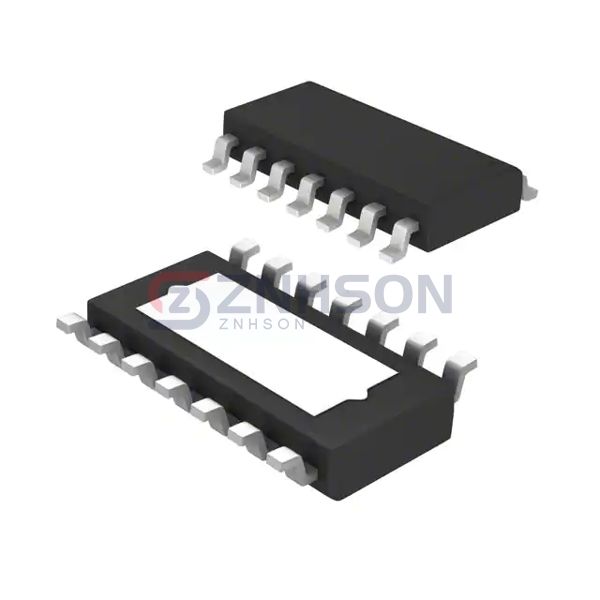

IC GATE DRV HI/LOW SIDE DSO14-43
$3.78
Available to order
Reference Price (USD)
2,500+
$1.50976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Infineon Technologies's 1EBN1001AEXUMA1, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The 1EBN1001AEXUMA1 demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: High-Side or Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT, N-Channel, P-Channel MOSFET
- Voltage - Supply: 13V ~ 18V
- Logic Voltage - VIL, VIH: 1.5V, 3.5V
- Current - Peak Output (Source, Sink): -
- Input Type: -
- High Side Voltage - Max (Bootstrap): 1200 V
- Rise / Fall Time (Typ): 50ns, 90ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 14-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: PG-DSO-14-43
