1EDN7550B
Infineon Technologies
Infineon Technologies

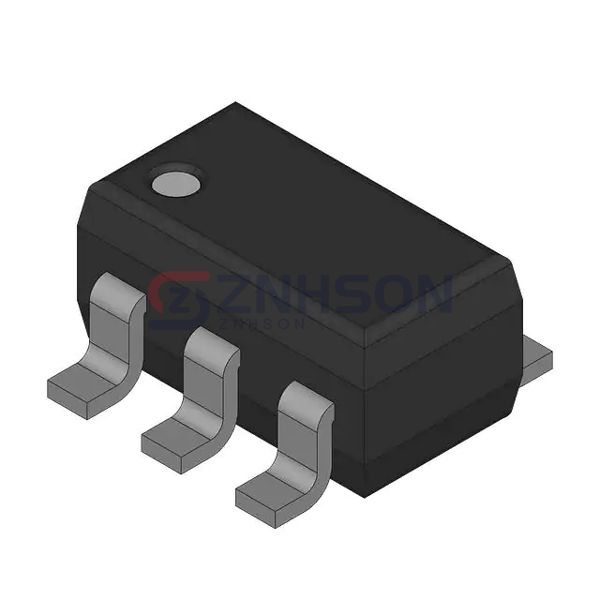

1EDN7550 - GATE DRIVER
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's 1EDN7550B establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the 1EDN7550B reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: High-Side and Low-Side
- Channel Type: Single
- Number of Drivers: 2
- Gate Type: N-Channel, P-Channel MOSFET
- Voltage - Supply: 4.5V ~ 20V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 4A, 8A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 6.5ns, 4.5ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: PG-SOT23-6-3
