1EDN7550UXTSA1
Infineon Technologies
Infineon Technologies

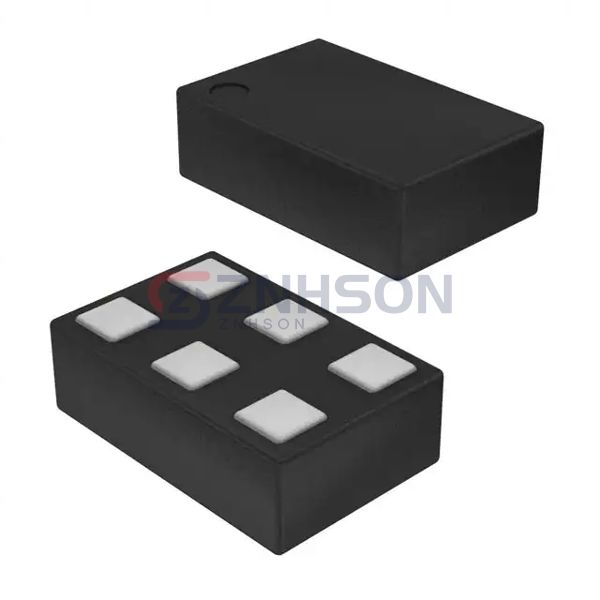

IC GATE DRVR HALF-BRIDGE TSNP-6
$1.34
Available to order
Reference Price (USD)
1+
$1.34000
500+
$1.3266
1000+
$1.3132
1500+
$1.2998
2000+
$1.2864
2500+
$1.273
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's 1EDN7550UXTSA1 represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the 1EDN7550UXTSA1 enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Active
- Driven Configuration: High-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: N-Channel, P-Channel MOSFET
- Voltage - Supply: 4.5V ~ 20V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 4A, 8A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 6.5ns, 4.5ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-XFDFN
- Supplier Device Package: PG-TSNP-6-13
