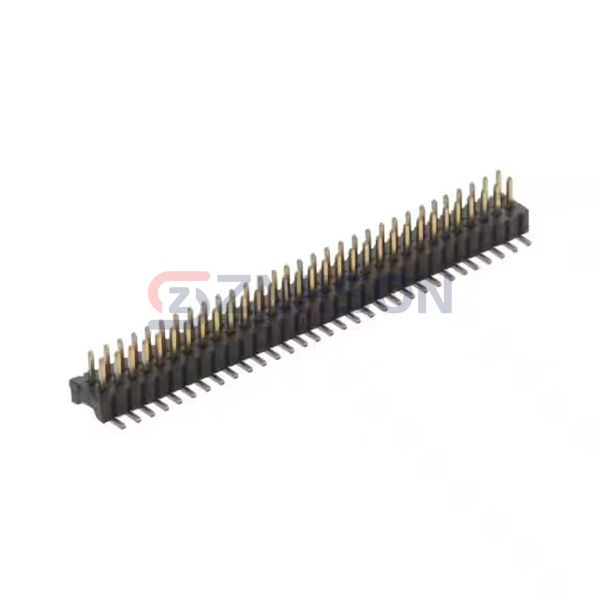

1MM-HU-D31-VS-00-F-TBP

Specifications

• Product Status: Active
• Connector Type: Header, Breakaway
• Contact Type: Male Pin
• Pitch - Mating: 0.039" (1.00mm)
• Number of Positions: 62
• Number of Rows: 2
• Row Spacing - Mating: 0.039" (1.00mm)
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Unshrouded
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.083" (2.10mm)
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.059" (1.50mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 3.94µin (0.100µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: Pick and Place
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 1A
• Voltage Rating: 30VAC
