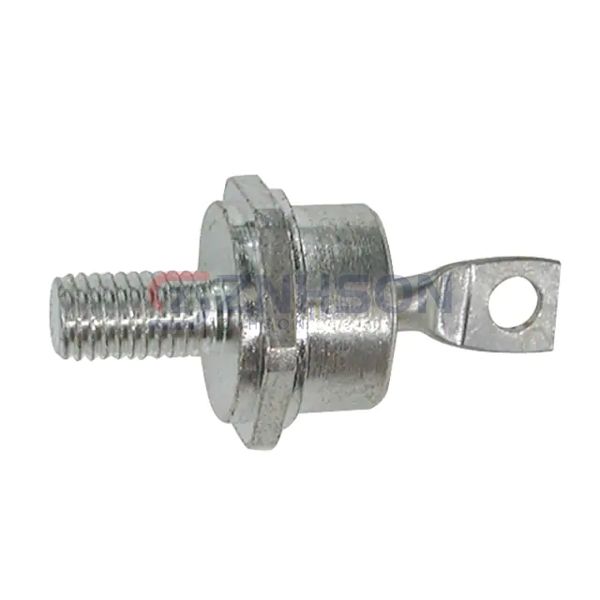

1N1194R
Solid State Inc.
Solid State Inc.
20 AMP SILICON RECTIFIER DO-5
$2.50
Available to order
Reference Price (USD)
1+
$2.50000
500+
$2.475
1000+
$2.45
1500+
$2.425
2000+
$2.4
2500+
$2.375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1N1194R single rectifier diode by Solid State Inc., a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The 1N1194R is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Solid State Inc.'s 1N1194R for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Standard, Reverse Polarity
- Voltage - DC Reverse (Vr) (Max): -
- Current - Average Rectified (Io): 12A
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 30 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: -
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-203AA, DO-4, Stud
- Supplier Device Package: DO-4
- Operating Temperature - Junction: -65°C ~ 200°C
