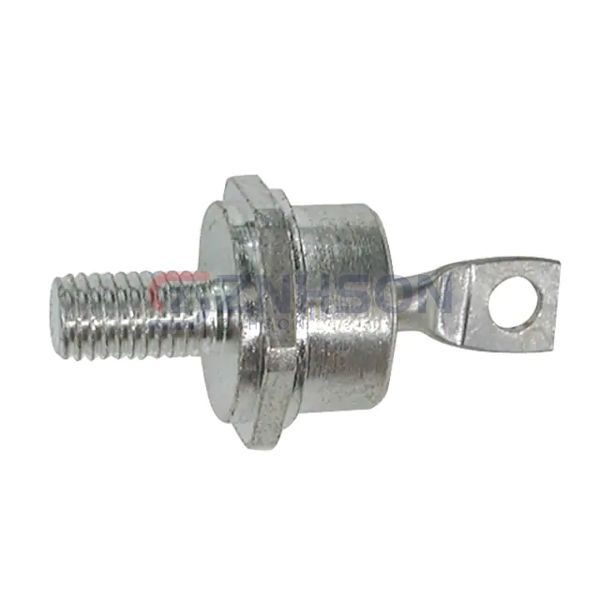

1N1197R
Solid State Inc.
Solid State Inc.
20 AMP SILICON RECTIFIER DO-5
$2.50
Available to order
Reference Price (USD)
1+
$2.50000
500+
$2.475
1000+
$2.45
1500+
$2.425
2000+
$2.4
2500+
$2.375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the 1N1197R single rectifier diode from Solid State Inc.. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the 1N1197R delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Solid State Inc.'s 1N1197R is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Active
- Diode Type: Standard, Reverse Polarity
- Voltage - DC Reverse (Vr) (Max): 500 V
- Current - Average Rectified (Io): 40A
- Voltage - Forward (Vf) (Max) @ If: 1.19 V @ 90 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 µA @ 500 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-203AB, DO-5, Stud
- Supplier Device Package: DO-5
- Operating Temperature - Junction: -65°C ~ 200°C
