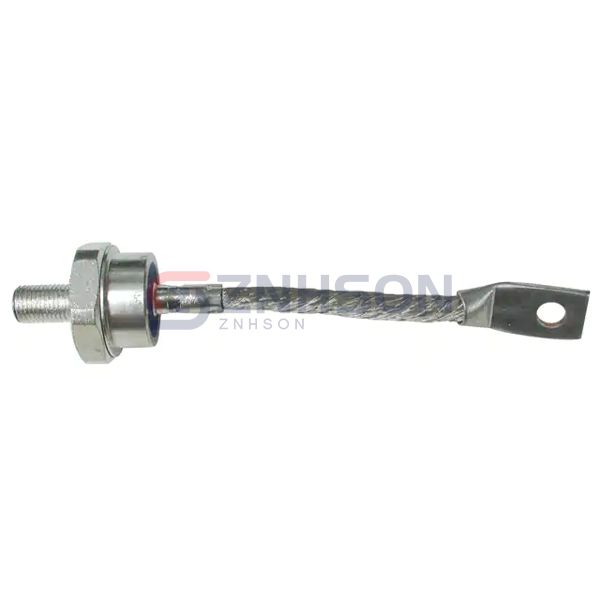

1N1396R
Solid State Inc.
Solid State Inc.
DO8 100 AMP SILICON RECTIFIER
$15.50
Available to order
Reference Price (USD)
1+
$15.50000
500+
$15.345
1000+
$15.19
1500+
$15.035
2000+
$14.88
2500+
$14.725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N1396R by Solid State Inc. is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the 1N1396R ensures long-term reliability even in harsh operating conditions. Trust Solid State Inc. for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard, Reverse Polarity
- Voltage - DC Reverse (Vr) (Max): 50 V
- Current - Average Rectified (Io): 100A
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 50 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-205AA, DO-8, Stud
- Supplier Device Package: DO-8
- Operating Temperature - Junction: -65°C ~ 200°C
