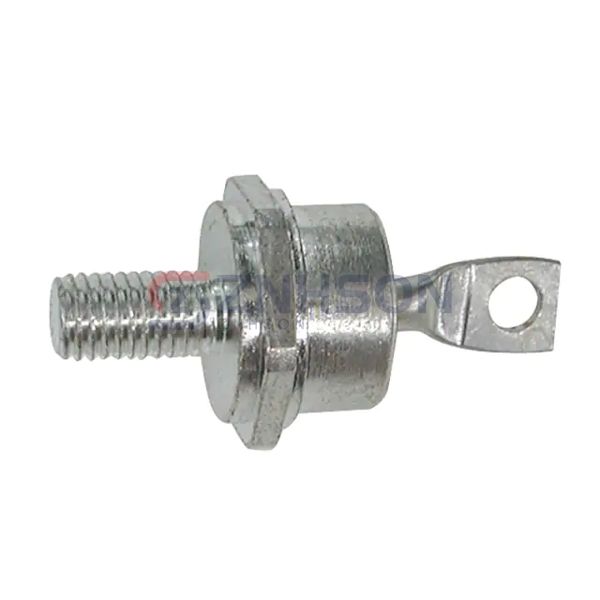

1N2285
Solid State Inc.
Solid State Inc.
DO5 40 AMP SILICON RECTFIER
$2.50
Available to order
Reference Price (USD)
1+
$2.50000
500+
$2.475
1000+
$2.45
1500+
$2.425
2000+
$2.4
2500+
$2.375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N2285 from Solid State Inc. is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Solid State Inc.'s dedication to quality means the 1N2285 meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 40A
- Voltage - Forward (Vf) (Max) @ If: 1.19 V @ 90 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 µA @ 600 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-203AB, DO-5, Stud
- Supplier Device Package: DO-5
- Operating Temperature - Junction: -65°C ~ 200°C
Related Products
Vishay General Semiconductor - Diodes Division
VSSB420S-M3/52T
Diodes Incorporated
SDMK0340L-7-F
Vishay General Semiconductor - Diodes Division
1N6479-E3/97
Panjit International Inc.
SS2030FL_R1_00001
Microchip Technology
UPR30E3/TR13
Sanken
EG01CV1
Panjit International Inc.
BR210-AU_R1_000A1
Taiwan Semiconductor Corporation
ESH1C
Comchip Technology

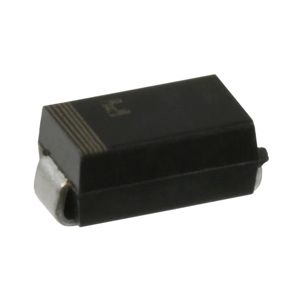

CFRA105-G
