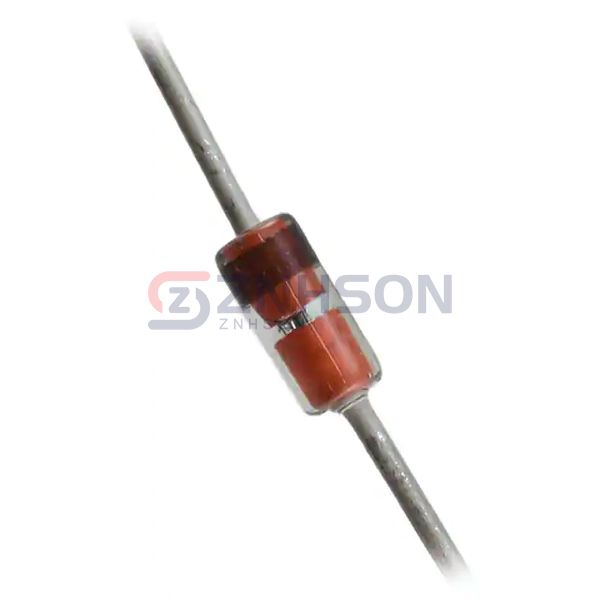

1N4305
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N4305 by Fairchild Semiconductor is a high-efficiency single rectifier diode designed for modern electronic applications. Part of the Diodes - Rectifiers - Single category, it provides excellent performance in power conversion and voltage regulation. Its low leakage current and high surge capacity make it suitable for medical imaging devices, data centers, and telecommunications infrastructure. The 1N4305 is also used in smart home devices and wearable technology, ensuring seamless operation. Fairchild Semiconductor's expertise in semiconductor technology guarantees that the 1N4305 delivers top-notch performance in any application.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io): 300mA
- Voltage - Forward (Vf) (Max) @ If: 850 mV @ 10 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 50 V
- Capacitance @ Vr, F: 2pF @ 0V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
- Operating Temperature - Junction: 175°C (Max)
