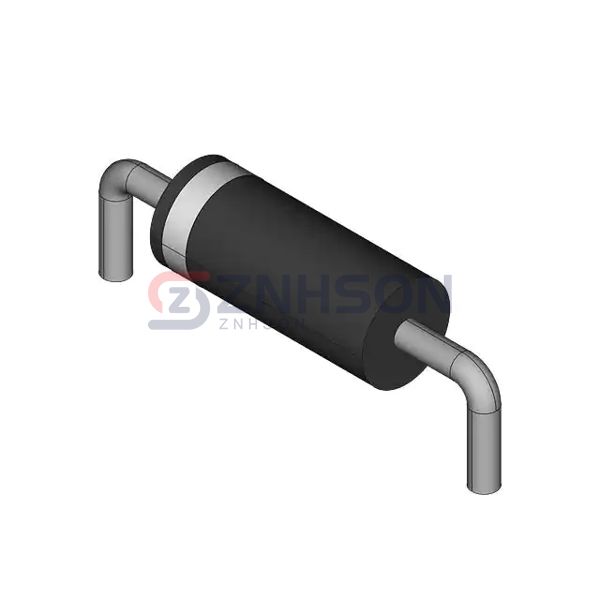

1N5394
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE
$0.04
Available to order
Reference Price (USD)
1+
$0.04000
500+
$0.0396
1000+
$0.0392
1500+
$0.0388
2000+
$0.0384
2500+
$0.038
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1N5394 single rectifier diode by Fairchild Semiconductor, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The 1N5394 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Fairchild Semiconductor's 1N5394 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io): 1.5A
- Voltage - Forward (Vf) (Max) @ If: 1.4 V @ 1.5 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 5 µA @ 300 V
- Capacitance @ Vr, F: 25pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-204AC, DO-15, Axial
- Supplier Device Package: DO-15
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
NTE Electronics, Inc
NTE6022
Vishay General Semiconductor - Diodes Division
BYM11-200HE3/97
Comchip Technology
CDBZ31060-HF
Panjit International Inc.
UF504IG_AY_00001
Vishay General Semiconductor - Diodes Division
ES3A-E3/57T
Central Semiconductor Corp
1N5060 TR PBFREE
Vishay General Semiconductor - Diodes Division
VS-SD400N24PC
Comchip Technology
AES1G-HF
Microchip Technology

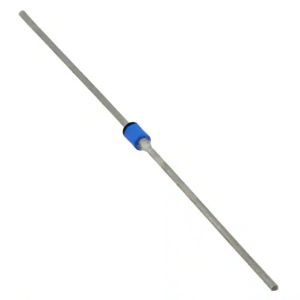

JAN1N5552/TR
