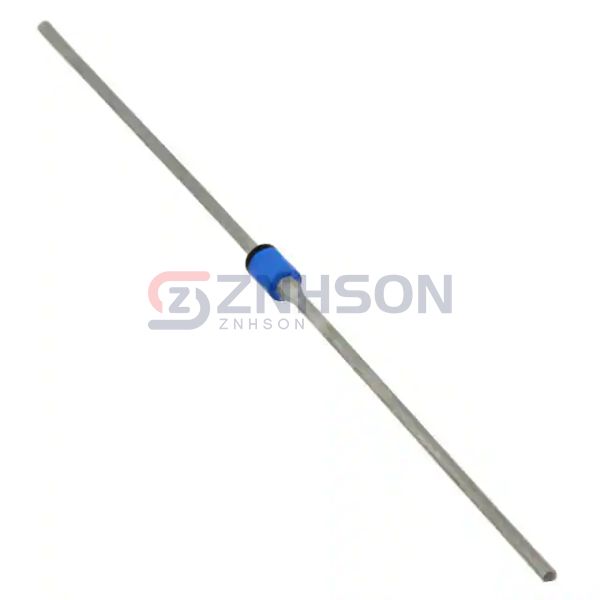

1N5802/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$6.93
Available to order
Reference Price (USD)
1+
$6.93000
500+
$6.8607
1000+
$6.7914
1500+
$6.7221
2000+
$6.6528
2500+
$6.5835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5802/TR from Microchip Technology is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Microchip Technology's 1N5802/TR for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 50 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 50 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: A, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
