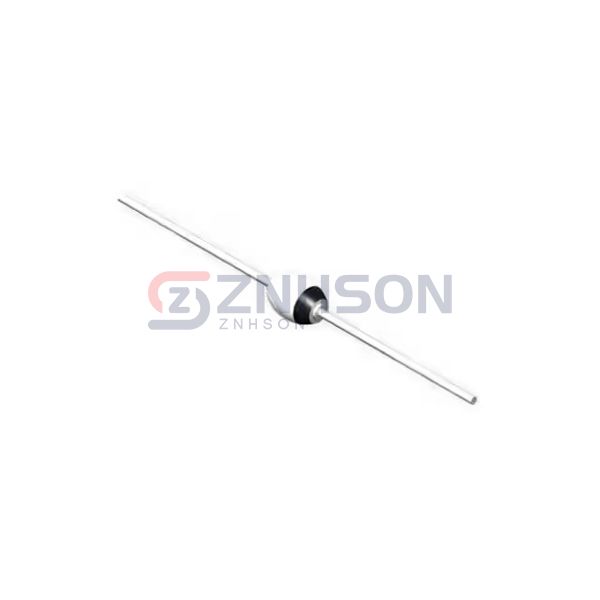

1N5803
Solid State Inc.
Solid State Inc.
DO-204AP 2.5 AMP RECTIFIER
$1.25
Available to order
Reference Price (USD)
570+
$5.44051
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the 1N5803 single rectifier diode by Solid State Inc.. As a vital component in the Discrete Semiconductor Products range, this diode offers superior rectification with minimal power loss. Its high-temperature tolerance and fast switching make it ideal for use in electric vehicles, industrial automation, and renewable energy systems. The 1N5803 is also a preferred choice for consumer electronics, including TVs and audio equipment, where efficiency and reliability are paramount. Choose Solid State Inc.'s 1N5803 for advanced semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io): 2.5A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 75 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-204AP, Axial
- Supplier Device Package: DO-204AP
- Operating Temperature - Junction: -65°C ~ 175°C
