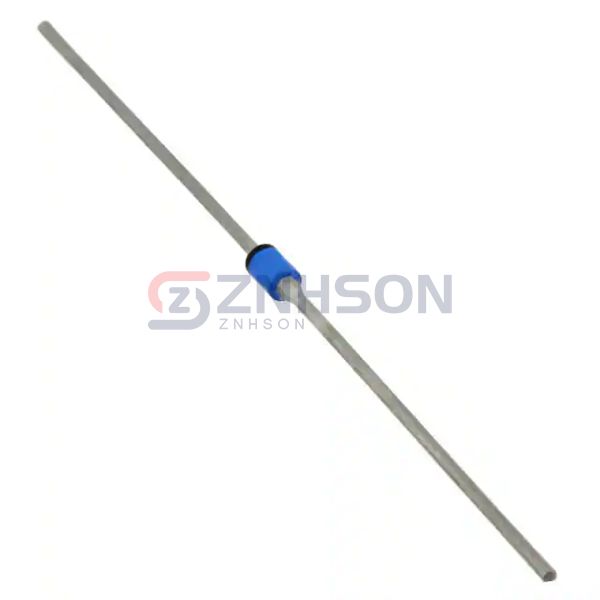

1N5803/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$5.62
Available to order
Reference Price (USD)
1+
$5.62497
500+
$5.5687203
1000+
$5.5124706
1500+
$5.4562209
2000+
$5.3999712
2500+
$5.3437215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5803/TR by Microchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the 1N5803/TR ensures long-term reliability even in harsh operating conditions. Trust Microchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 75 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: A, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
