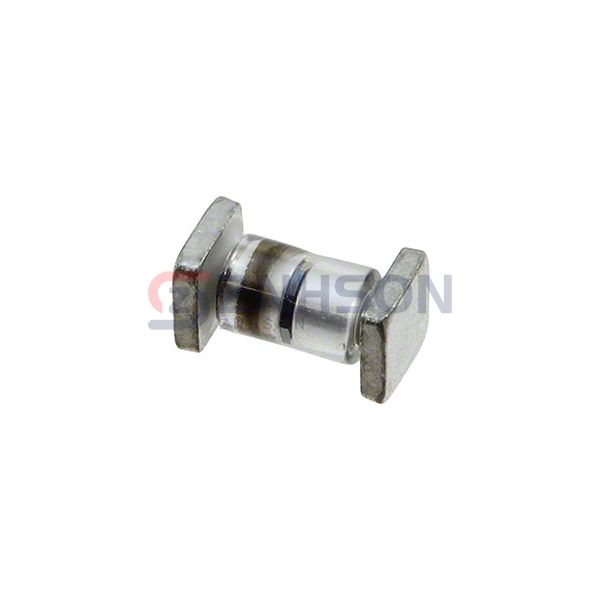

1N5804US
Microchip Technology
Microchip Technology
DIODE GEN PURP 100V 1A D5A
$9.46
Available to order
Reference Price (USD)
1+
$11.48000
10+
$10.44000
100+
$8.87400
500+
$7.56900
1,000+
$7.30800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the 1N5804US single rectifier diode from Microchip Technology. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the 1N5804US delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Microchip Technology's 1N5804US is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 100 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
- Operating Temperature - Junction: -65°C ~ 175°C
