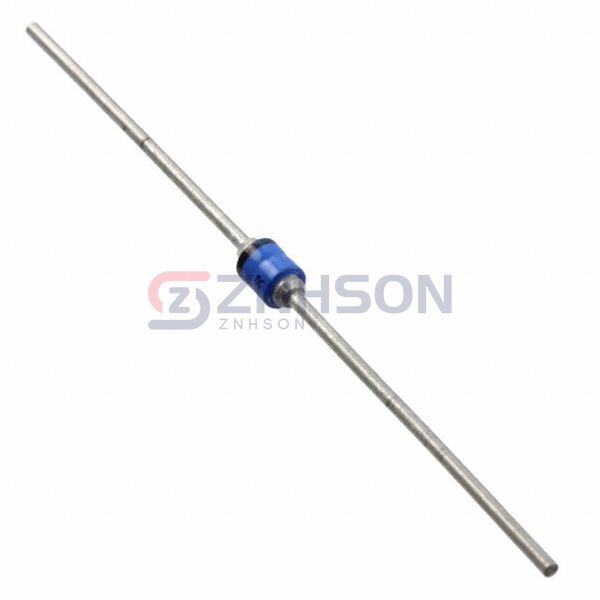

1N5809
Microchip Technology
Microchip Technology
DIODE GEN PURP 100V 3A AXIAL
$6.90
Available to order
Reference Price (USD)
1+
$7.88000
10+
$7.08800
100+
$5.82750
500+
$4.88250
1,000+
$4.41000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5809 by Microchip Technology is a high-efficiency single rectifier diode designed for modern electronic applications. Part of the Diodes - Rectifiers - Single category, it provides excellent performance in power conversion and voltage regulation. Its low leakage current and high surge capacity make it suitable for medical imaging devices, data centers, and telecommunications infrastructure. The 1N5809 is also used in smart home devices and wearable technology, ensuring seamless operation. Microchip Technology's expertise in semiconductor technology guarantees that the 1N5809 delivers top-notch performance in any application.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: B, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
