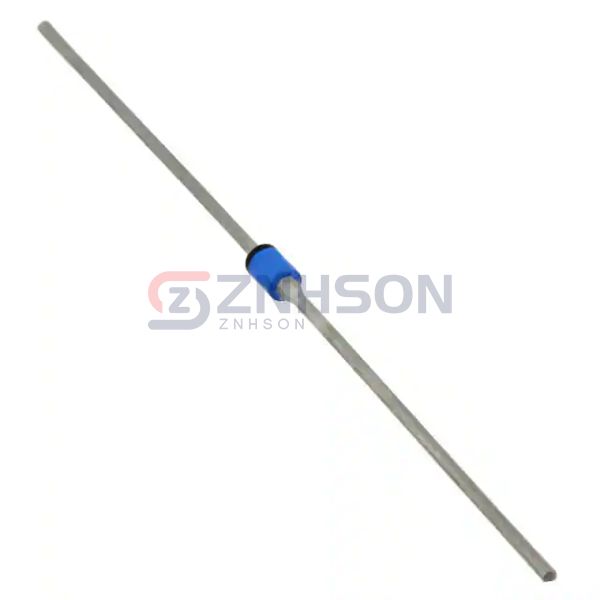

1N5809E3/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$7.26
Available to order
Reference Price (USD)
1+
$7.26000
500+
$7.1874
1000+
$7.1148
1500+
$7.0422
2000+
$6.9696
2500+
$6.897
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the 1N5809E3/TR single rectifier diode from Microchip Technology. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The 1N5809E3/TR is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Microchip Technology's commitment to innovation ensures that the 1N5809E3/TR meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 6A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: -
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: B, Axial
- Supplier Device Package: B, Axial
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
Vishay General Semiconductor - Diodes Division
VS-T85HFL100S05
Microchip Technology
1N6663US/TR
Vishay General Semiconductor - Diodes Division
GP10YE-E3/54
Diotec Semiconductor
SB160S
Vishay General Semiconductor - Diodes Division
1N5059TAP
Taiwan Semiconductor Corporation
S10MC R7G
Yangzhou Yangjie Electronic Technology Co.,Ltd
SS56-F1-0000
Nexperia USA Inc.
RB520S30YL
Bourns Inc.

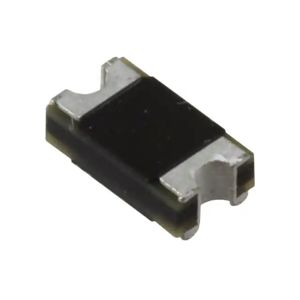

CD1408-FU1200
