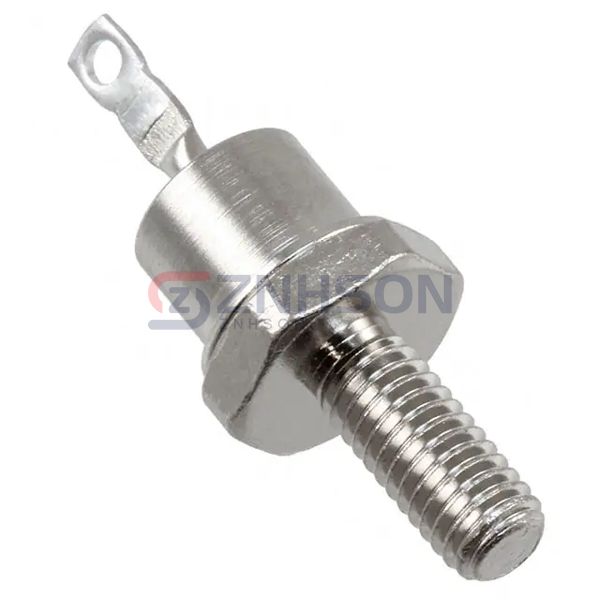

1N5814
Microchip Technology
Microchip Technology
DIODE GEN PURP 100V 20A DO203AA
$59.26
Available to order
Reference Price (USD)
100+
$35.35500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5814 by Microchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the 1N5814 ensures long-term reliability even in harsh operating conditions. Trust Microchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 20A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 100 V
- Capacitance @ Vr, F: 300pF @ 10V, 1MHz
- Mounting Type: Stud Mount
- Package / Case: DO-203AA, DO-4, Stud
- Supplier Device Package: DO-203AA
- Operating Temperature - Junction: -65°C ~ 175°C
