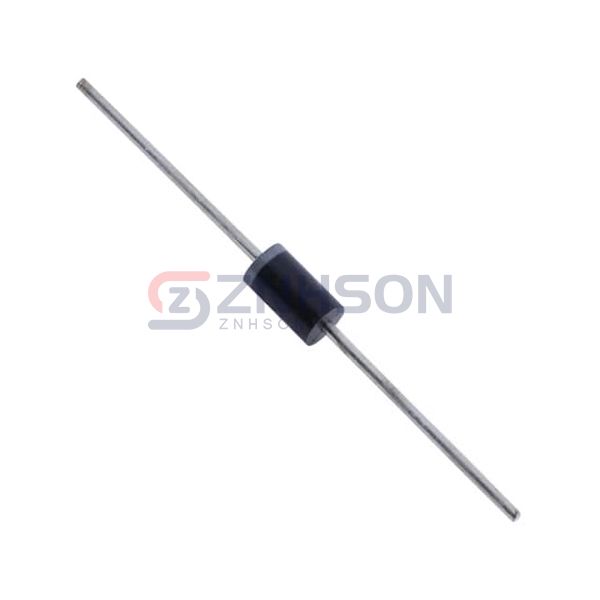

1N5820
NTE Electronics, Inc
NTE Electronics, Inc
R-SCHOTTKY 20V 3A
$0.52
Available to order
Reference Price (USD)
1,250+
$0.19363
2,500+
$0.17654
6,250+
$0.16516
12,500+
$0.15946
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's efficiency with the 1N5820 single rectifier diode from NTE Electronics, Inc. This Discrete Semiconductor Product is crafted for precision, offering fast recovery times and high current handling. It is ideal for use in power supplies, motor controls, and lighting systems, where energy efficiency is crucial. The 1N5820 is also employed in agricultural machinery and marine electronics, proving its versatility across industries. NTE Electronics, Inc's 1N5820 is synonymous with reliability, making it a trusted choice for engineers worldwide.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 475 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 190pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -65°C ~ 125°C
