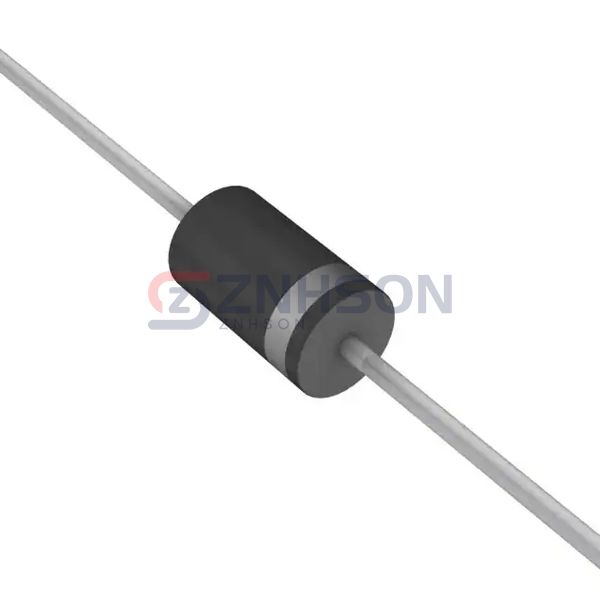

1N5820 B0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 20V 3A DO201AD
$0.00
Available to order
Reference Price (USD)
10,000+
$0.10150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the 1N5820 B0G single rectifier diode from Taiwan Semiconductor Corporation. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The 1N5820 B0G is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Taiwan Semiconductor Corporation's commitment to innovation ensures that the 1N5820 B0G meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 475 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 200pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 125°C
