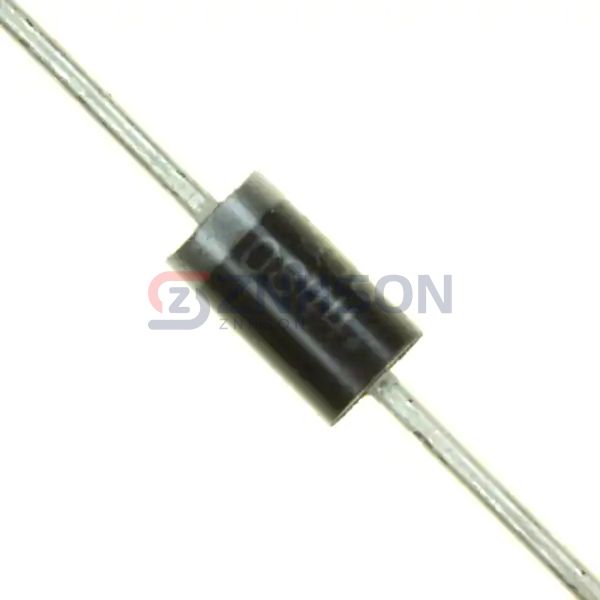

1N5820G
onsemi
onsemi
DIODE SCHOTTKY 20V 3A DO201AD
$0.61
Available to order
Reference Price (USD)
1+
$0.41000
10+
$0.34700
100+
$0.26150
500+
$0.20724
1,000+
$0.16200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5820G from onsemi is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. onsemi's dedication to quality means the 1N5820G meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 475 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 2 mA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AA, DO-27, Axial
- Supplier Device Package: Axial
- Operating Temperature - Junction: -65°C ~ 125°C
