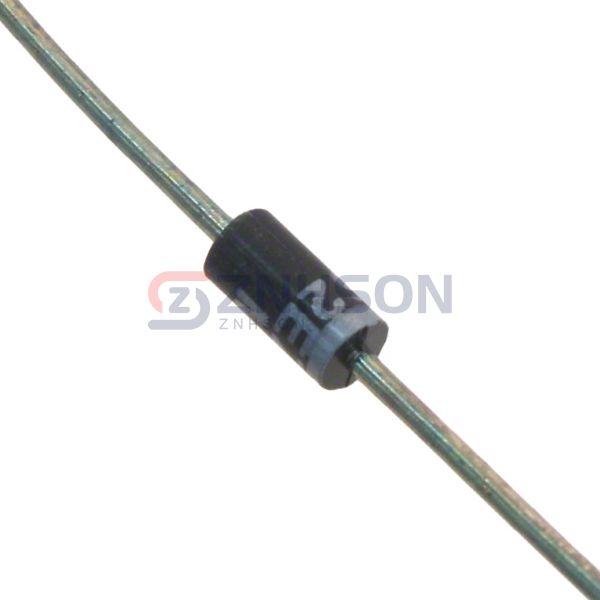

1N5945AG
Microsemi Corporation
Microsemi Corporation
DIODE ZENER 68V 1.25W DO204AL
$3.27
Available to order
Reference Price (USD)
1+
$3.27000
500+
$3.2373
1000+
$3.2046
1500+
$3.1719
2000+
$3.1392
2500+
$3.1065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5945AG from Microsemi Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1N5945AG is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 68 V
- Tolerance: ±10%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 120 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 51.2 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-204AL (DO-41)
Related Products
Microchip Technology
CDLL6331
Microchip Technology
1N827-1/TR
Panjit International Inc.
BZT52-C4V7S-AU_R1_000A1
Microchip Technology
1N4569A-1E3
Microchip Technology
SMAJ5930BE3/TR13
Vishay General Semiconductor - Diodes Division
BZX384C16-E3-18
Microchip Technology
JANS1N4128D-1/TR
NTE Electronics, Inc
NTE5015SM
Central Semiconductor Corp

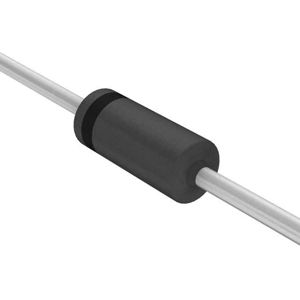

1N5254B BK PBFREE
